JX-380间歇圆压圆
    发布时间: 2024-04-17 10:38

JX-380

Intermittent Circular Pressure

间歇圆压圆

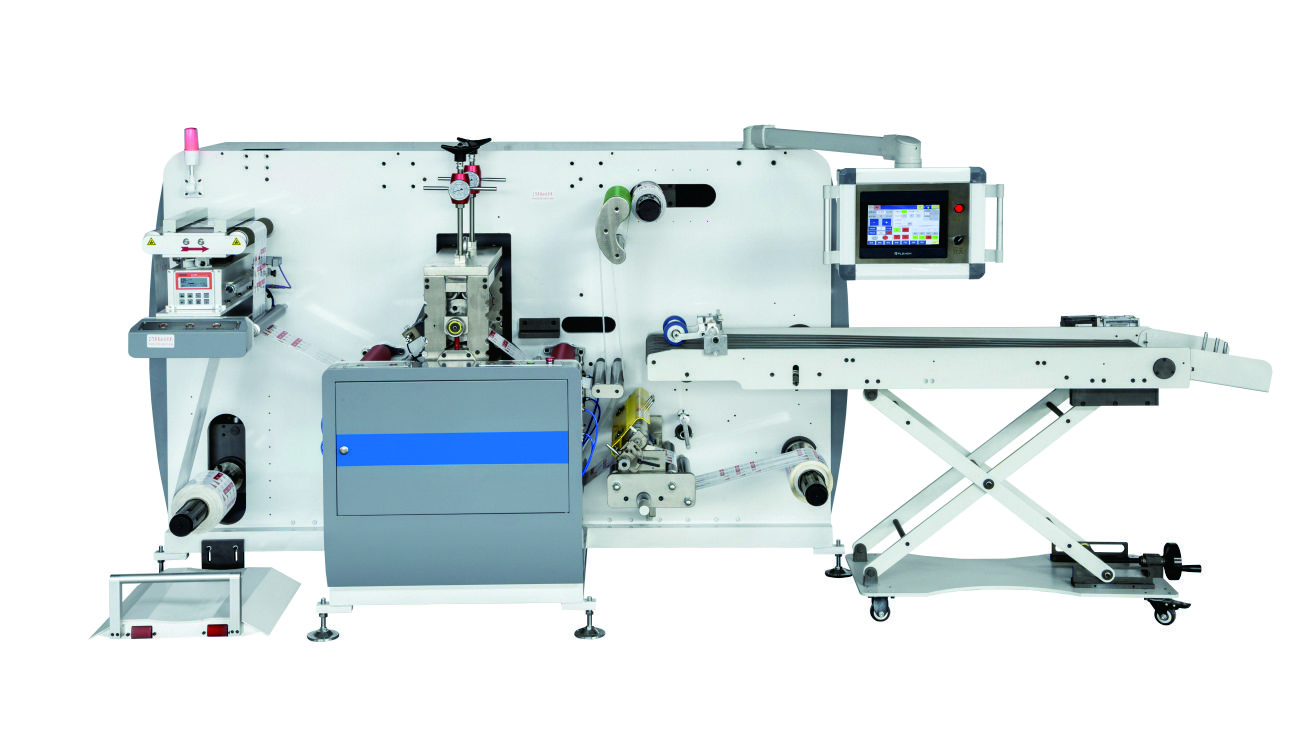

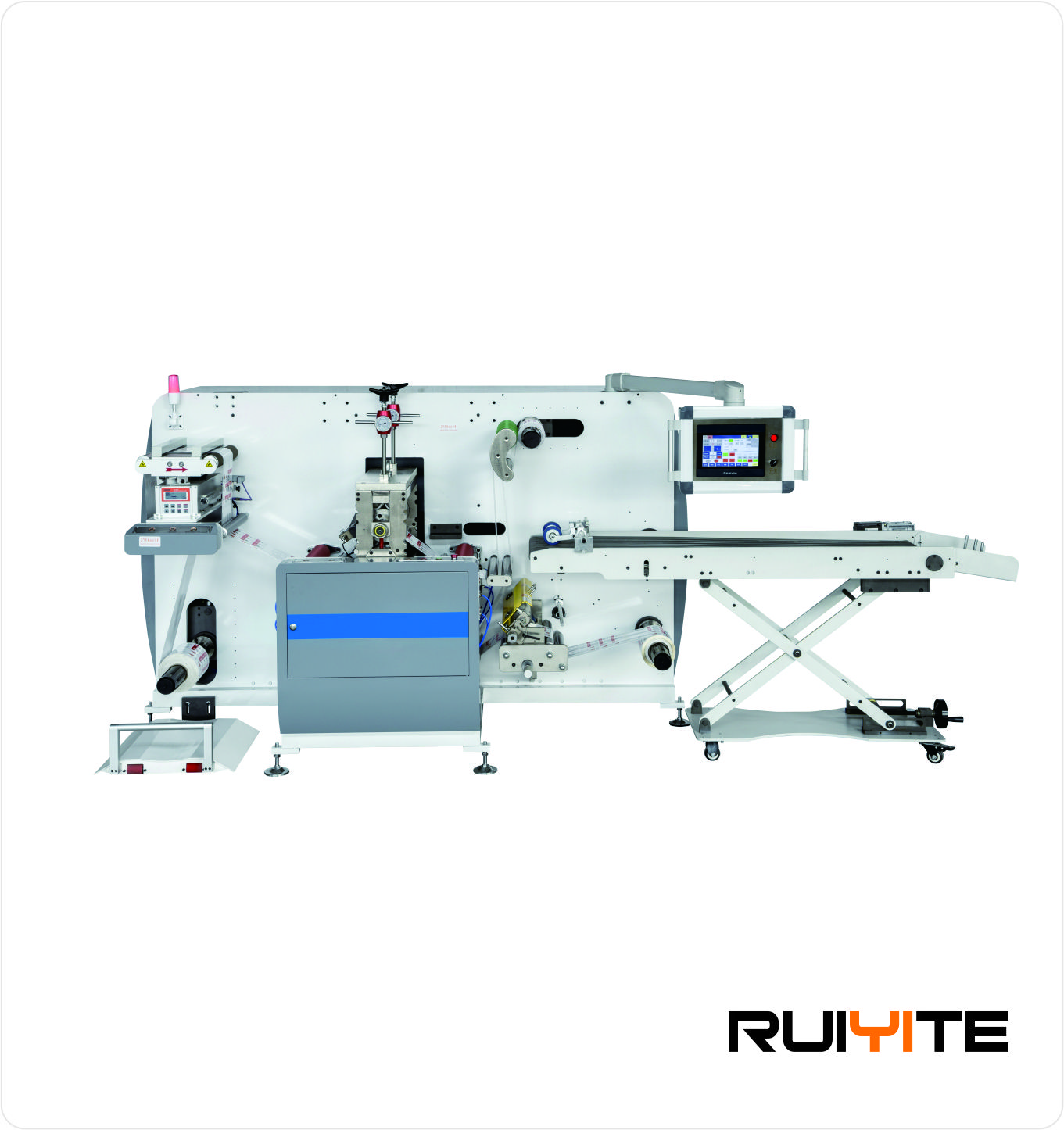

JX-380间歇圆压圆

性能特点

FUNCTIONS



JX-380多功能间歇轮转模切机,本设备针对标签印刷企业模内标签无法模切或者使用传统设备效率低下等问题而开发,并且取得多项专利。该机整合了模内标签全轮转模切方式与不干胶间歇模切方式,两种工作模式可随意互换,小批量模内标还可以使用间歇方式模切。很好的解决了印刷厂模内标签项目难以启动的困惑。另外还可以选配覆膜、分条或切单张。

JX-380 multifunctional intermittent rotary die-cutting machine was developed to address issues such as the inability to die-cut in-mold labels or low efficiency with traditional equipment in label printing enterprises, and it has obtained multiple patents. This machine integrates the full rotary die-cutting method for in-mold labels with the intermittent die-cutting method for pressure-sensitive labels, allowing easy switching between the two modes. For small batches of in-mold labels, the intermittent cutting method can also be used. It effectively resolves the challenges faced by print shops in starting in-mold label projects. Additionally, it can be equipped with laminating, slitting, or cutting individual sheets.

◎主要技术参数

Main Technical Parameter

Model

型号

JX-380

JX-450

Maximum intermittent die-cutting speed

间歇最高模切速度

0-60m/min

0-60m/min

Maximum rotary die-cutting speed

轮转最高模切速度

0-120m/min

0-120m/min

Intermittent maximum die-cut length

间歇最大模切长度

330 mm

330 mm

Precision of self-adhesive die cutting

不干胶模切精度

±0.15 mm

±0.15 mm

In-mold label cutting accuracy

模内标模切精度

±0.25 mm

±0.25 mm

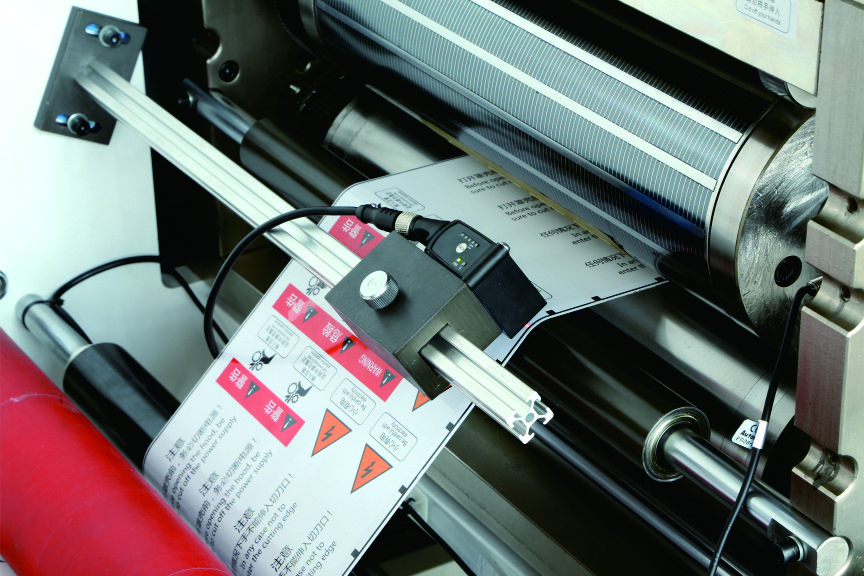

Die-cutting positioning method

模切定位方式

色标传感器

色标传感器

Maximum paper feed width

最大进纸宽度

380 mm

450 mm

Maximum uncoiled diameter

最大放卷直径

800mm

800mm

Max Rewinding Diameter

最大收卷直径

600mm

600mm

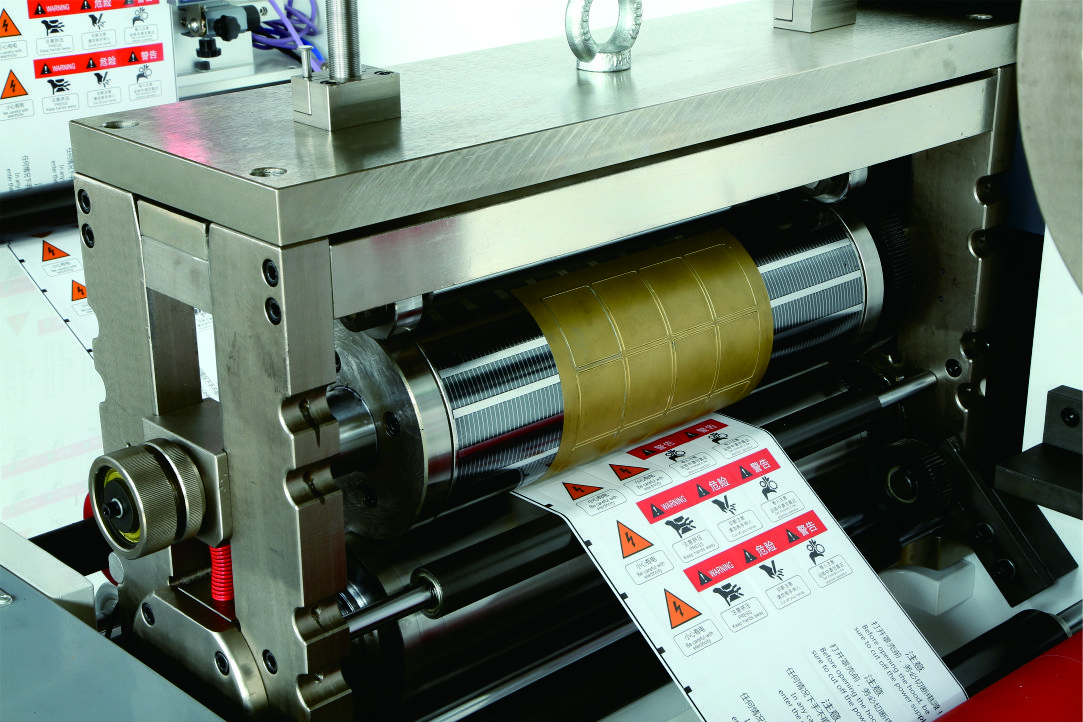

Standard die cutting magnetic roller

标配模切磁性辊

120T/140T

120T/140T

Total Power

总功率

15 kw

20 kw

Overall Diameters

外形尺寸

2900x1200x1500mm

2900x1270x1500mm

Machine Weight

整机重量

2800 KG

3200 KG

 working power supply

工作电源

AV380 V50 HZ

AV380 V50 HZ

Air pressure requirements

气压要求

0.4~0.6 MPa

0.4~0.6 MPa

Minimum cut width

最小分切宽度

16 mm

16mm
